Halo-lit channel letters

Halo-lit channel letters, also called reverse-lit or back-lit letters, turn the usual lit sign around. Instead of glowing from the front, each letter sends its light backward onto the wall, so your name stands out as solid shapes in a soft ring of light. It is the quieter, more architectural way to light a sign, and it rewards a little planning around the wall.

How the halo effect works

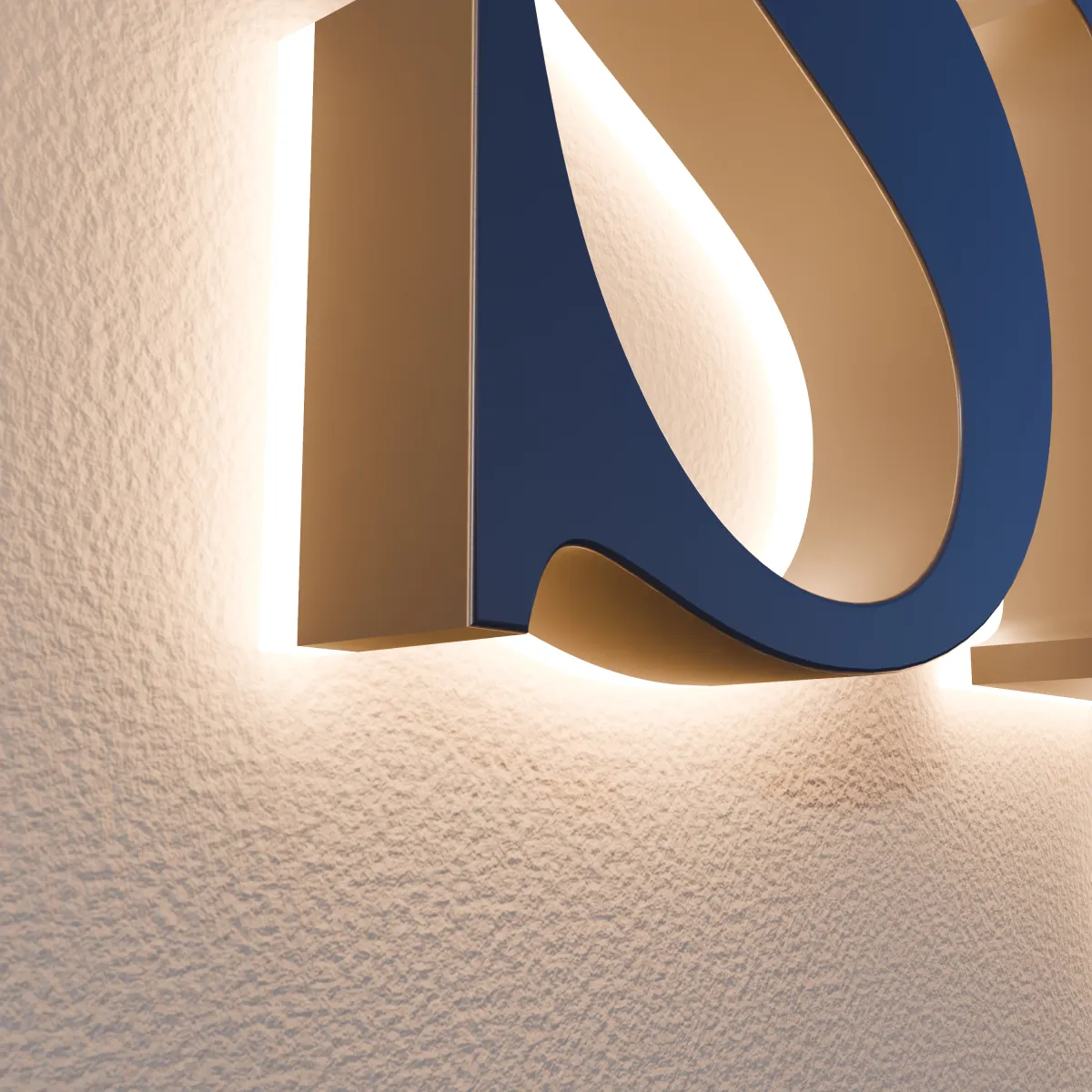

A halo-lit letter is a closed steel shape. The face is solid 304 stainless steel, printed with your artwork. The returns, also 304 stainless steel, are bent to the outline of the letter. The back is acrylic. LED modules inside light up the back, and the light comes out through the acrylic and spreads across the wall around the letter.

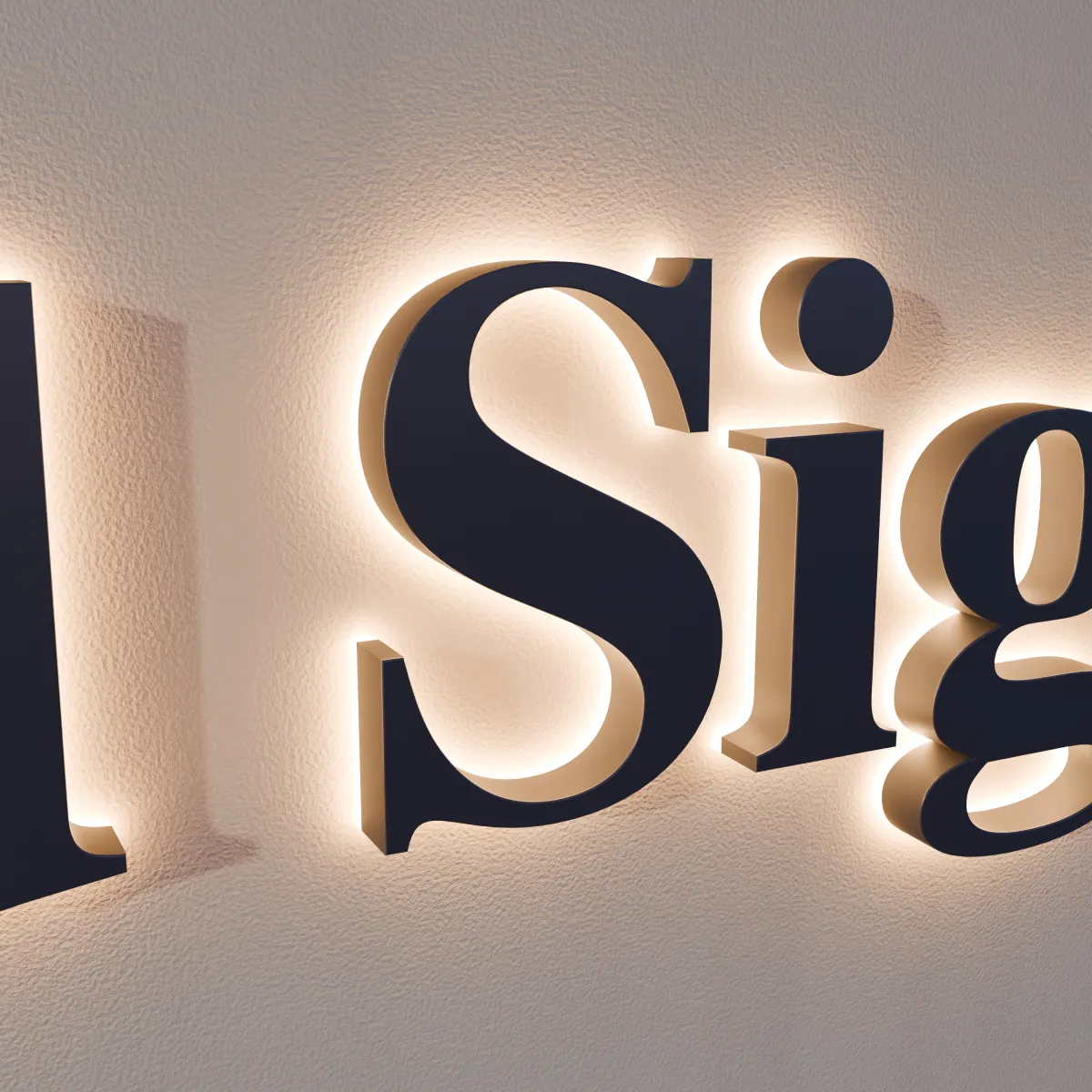

The result is a glow that traces each letter, including the open spaces inside letters like o, d and a. The letters mount flush to the wall, like every Amid Signs letter. Nothing on the front lights up, and that's the point.

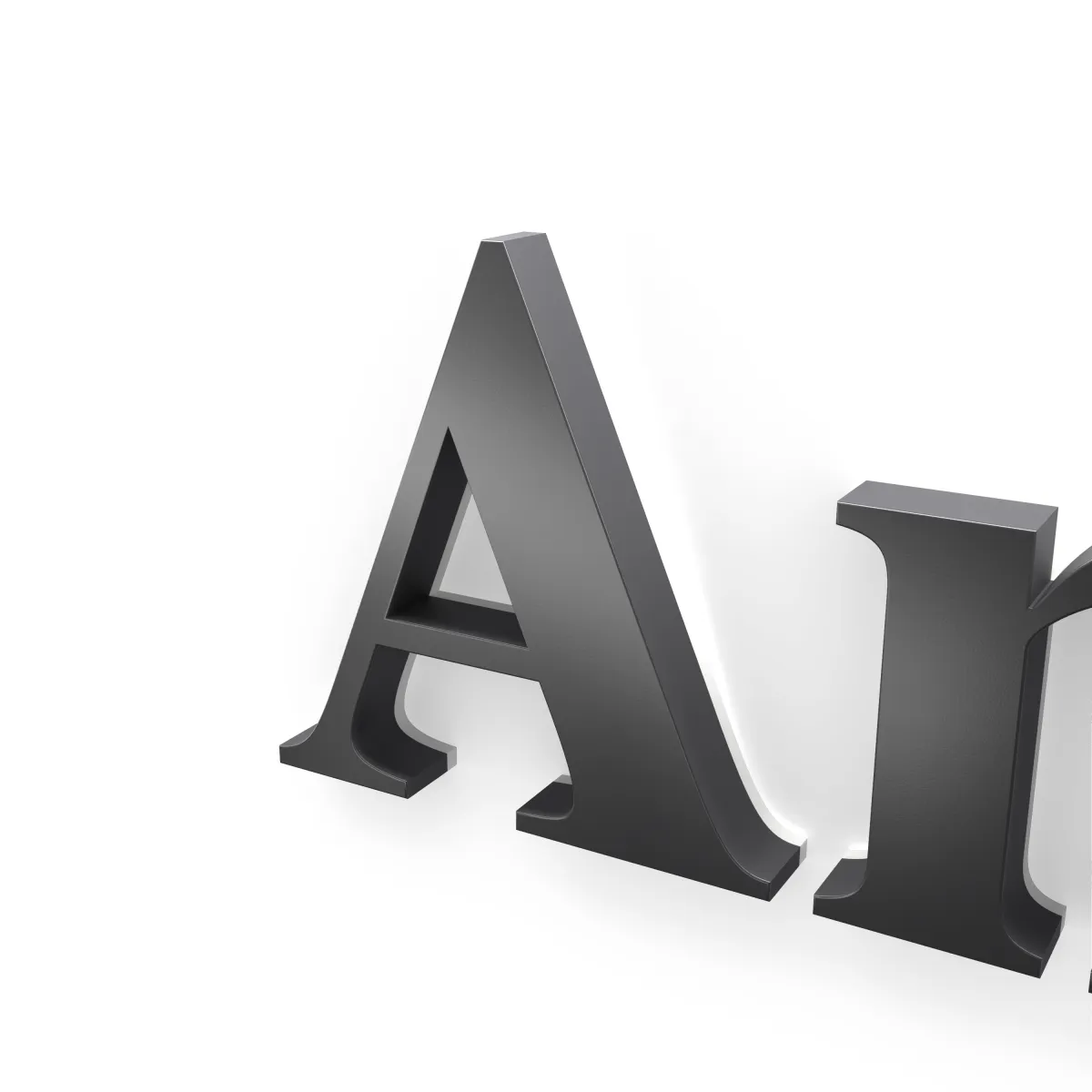

• By day, the solid faces show your colors, like painted metal letters. With the lights off, the sign still looks finished and dimensional.
• At night, the faces stay dark and the wall glows around them. Your name reads as a silhouette against light rather than as light itself.

Because the light is indirect, halo-lit letters feel calmer than front-lit ones, and they don't shine into the room or at people walking by. They read best from the sidewalk, from across a lobby or from the other side of the street, rather than from far down the road.

Your wall is part of the sign

With halo-lit letters, the wall does half the work: it is the surface the light lands on. Before anything else, look at the wall the letters will sit on.

• Light, smooth, matte walls show the halo best. The glow spreads evenly and stays soft.
• Dark walls absorb the light, so the halo looks faint.
• Glossy surfaces such as polished stone, glossy tile or glass can reflect the LEDs like a mirror instead of glowing.
• Brick and stone give the glow a texture that follows the surface. Send a photo so we can show it on your drawing.

The face color matters as well. By day the halo is barely visible, so pick a face color that contrasts with the wall and the letters read in daylight too. Not sure what your wall will do? Send a photo with your quote request, and we check it on your drawing.

Where halo-lit letters fit best

Halo-lit letters suit places where people see the sign from a few steps away, and where the look of the brand matters as much as reading distance:

• Offices and lobbies: the classic reception-wall sign. The glow adds depth without shining into the room or reflecting hard off screens and glass.
• Salons, spas and barbershops: a polished storefront by day and a calm ring of light at night.
• Hotels: the entrance, the drop-off canopy and the lobby, where an upscale look counts.
• Medical and dental practices: the reception wall, where the light falls on the wall instead of toward the waiting room.

If people need to read your name from a moving car, front-lit letters carry more light. You can also use both: front-lit on the side that faces the road, halo-lit inside.

Letter height still follows viewing distance: the farther away your readers, the taller the letters. The size guide has a chart and a calculator, and we suggest a size on your drawing from your wall width and a photo.

Artwork, fonts and colors on a steel face

Because the face is solid steel printed with your artwork, the letters themselves can carry your logo colors. That is the big difference from front-lit, where the color comes from the acrylic, and it is why a halo-lit sign can look like a three-dimensional version of your logo. A few things shape how a design works as halo-lit letters:

• Bold shapes make a clear halo. The glow traces each outline, so medium to bold fonts with fairly even strokes give the cleanest result. Very thin strokes cast only a thin line of light.
• Spacing keeps letters apart. If letters sit very close together, their glows can run into each other. A little more space keeps each one distinct.
• Small details need care. Fine serifs, script joins, small taglines and tiny symbols may be too small to build at your letter size. Your drawing shows how they are handled.
• Color codes help. Send Pantone (PMS), HEX, RGB or CMYK values if you have them. Printed steel won't look exactly like your logo on a screen, so tell us which colors matter most.

More on each topic: Choosing a font for channel letters, How to match channel letters to your brand colors and Choosing colors and finishes for stainless steel letters, which also covers the finish of the returns.

Halo-lit, front-lit or open-face neon?

All three styles are built in 304 stainless steel and mount flush to the wall. They differ in where the light comes out, and that changes the whole character of the sign:

• Halo-lit (this page): light on the wall behind solid, printed faces. Soft, indirect and upscale, and at its best on a light, smooth wall.
• Front-lit: the acrylic face glows. Brighter, more direct and easier to read from far away, on almost any wall.
• Open-face neon: a visible line of LED neon inside each open steel stroke. Bold and playful rather than quiet.

If you are deciding between halo-lit and front-lit, Front-lit vs. halo-lit: how to choose compares them by viewing distance, wall, daytime look and night light. Still unsure? Choose "Not sure yet" on the quote form, and we suggest a style on your drawing.

Ordering, installing and caring for halo-lit letters

Every order starts with a drawing. Send your logo, your wall width or a photo, and whether the sign goes indoors or outdoors, through the quote form. We email back a drawing with letter sizes and colors, a preview of the sign lit up and an exact price. Once you approve it, you pay by card, and larger orders can also pay by bank transfer. Nothing is made before you approve. How it works has the details.

Installation is the same as for our other letters: flush to the wall, with a paper template to mark the holes. The mounting hardware and power supply are listed on your drawing, and a licensed electrician should make the power connection. How flush-mounted channel letters are installed has the steps.

To keep the halo looking its best, clean the steel faces and returns with mild soapy water and a soft cloth, with the power off. Keep the wall around the letters clean too: marks there show up at night. How long LED channel letters last, and how to care for them covers what wears and when to call an electrician. For everything else, start with Channel letters: the complete guide.
