Front-lit channel letters

Front-lit channel letters, also called face-lit letters, are the classic lit storefront sign. Each letter is a shallow steel box in the shape of the letter, and its face is the part that glows. It is the most direct way to put your name in light. Here is how they work, where they shine and what to plan before you order.

How front-lit letters work

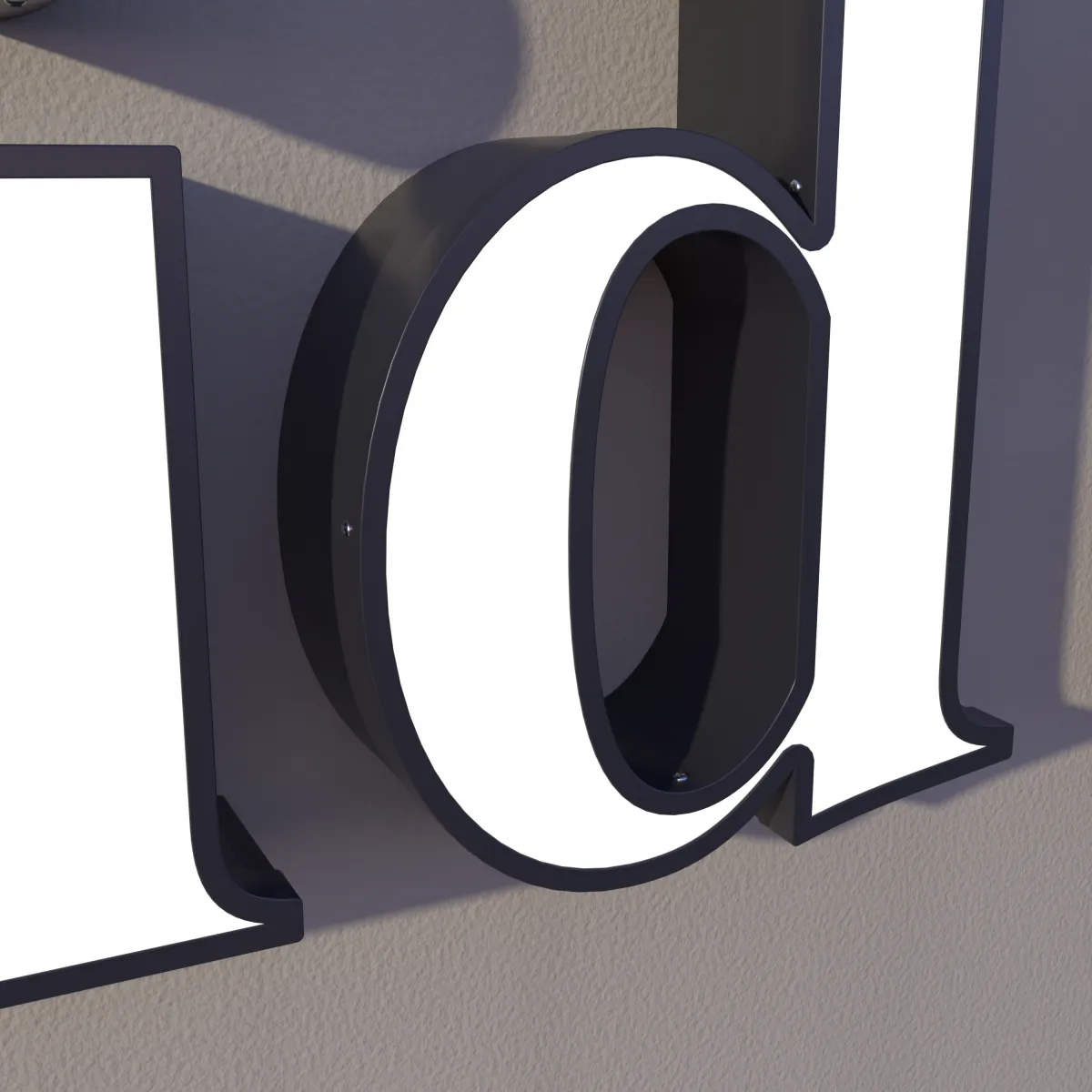

Every letter starts with its return: the side wall, made of 304 stainless steel, cut and bent to follow the outline of the letter. LED modules are wired inside, and an acrylic face closes the front. When the sign is on, light passes through the acrylic, so the whole face of each letter glows evenly while the steel sides stay solid.

That short, straight path is what makes the style so easy to read. The light points at the person looking at the sign, and the steel return gives every letter a clean edge, so the shapes stay sharp even from far away.

• By day, you see the face color framed by the steel: white, or a color from your logo. With the lights off, the letters still read as solid, dimensional shapes on the wall.
• At night, the faces glow and the returns fall back into the dark, so your name appears as bright letters with crisp outlines.

Your drawing includes a preview of the sign lit up, with the face color and the light color, so you can judge the night look before anything is made.

Where front-lit letters work best

Choose front-lit when people have to read your name from a distance: from a moving car, from the far end of a parking lot or across a busy street. The whole letter carries light, so it holds its own against headlights, streetlights and the signs next door. That makes it a natural fit for:

• Restaurants and cafés on a busy road or in a shopping center, where diners decide from the car
• Retail stores that depend on people driving by
• Medical and dental practices whose patients need to find the right door early in the morning or after dark in winter
• Gyms in large units set back from the road, where the name has to read at 5 a.m. and at 9 p.m.

Distance also sets the letter height: the farther away your readers are, the taller the letters need to be. For wall signs, the United States Sign Council recommends about 1 in of capital letter height for every 10 ft of viewing distance. Our size guide has a distance chart and a calculator. Send your wall width and a photo, and we suggest a size on your drawing.

Fonts, logos and face colors

Most front-lit signs are built from the font and logo a business already uses. The face follows the full outline of each letter, so serifs, curves and the open spaces inside letters like a, e and o all carry light. A few things change once a font is lit:

• Stroke weight. Medium to bold fonts with fairly even strokes glow the most evenly. A hairline leaves little room inside for light and reads as a faint line from far away.
• Spacing. Lit letters set very tight can blur together at a distance. A little more room helps each letter read on its own, though it also makes the sign wider.
• Small details. A tiny tagline, a thin script join or a trademark symbol may be too small to build at your letter size. Your drawing shows how each one is handled before you approve it.
• Logo marks. An icon or symbol can be built as its own lit piece next to the letters, with the same steel return around it.

For the face color, light colors glow brighter at night, while darker colors let less light through and look dimmer. The same acrylic can look quite different in daylight than when it is lit, which is why the lit preview matters. The returns frame the face: a dark return gives each letter a crisp outline, and a return that matches the face makes it read as one solid shape.

Go deeper with Choosing a font for channel letters, How to match channel letters to your brand colors and Choosing colors and finishes for stainless steel letters.

Front-lit, halo-lit or open-face neon?

All three styles start from the same 304 stainless steel letter and mount flush to the wall. What changes is where the light comes out:

• Front-lit (this page): light comes through the acrylic face. Bright, direct and the easiest to read from far away, on almost any wall.
• Halo-lit: the face is solid steel printed with your artwork, and the light glows on the wall around each letter. Softer at night, and best read from closer up.
• Open-face neon: open steel channels with a line of LED neon inside each stroke. The look of neon, built as a steel letter.

If your readers are on the road or your wall is dark, front-lit is usually the practical choice. If you like the idea of solid metal letters by day, read Front-lit vs. halo-lit: how to choose. It settles the question with four points: distance, your wall, the daytime look and how much light you want at night.

Installation and care

Front-lit letters mount flush to the wall: the back of each letter sits right against the wall surface. A paper template comes with your sign, so you tape it up, mark the holes and fix each letter in place instead of measuring letter by letter. The mounting hardware and power supply for your sign are listed on your drawing. Lit letters need power at the wall behind the sign, and a licensed electrician should make that connection.

How flush-mounted channel letters are installed walks through the job step by step, so you can do it yourself or hand it to a sign installer.

Care is simple, and it pays off at night: the face is what people read, so a clean face is a bright face. With the power off, wash the acrylic and the steel with mild soap in warm water and a soft cloth, then rinse and dry. Skip abrasive pads, window sprays and solvents, which can scratch or craze acrylic. How long LED channel letters last, and how to care for them covers the rest, including what to check if a letter goes dark.

How ordering works

There is no cart and no guesswork. Every front-lit sign starts with a drawing:

1. Send your logo, your wall width or a photo of the wall, and whether the sign goes indoors or outdoors, through the quote form. No account needed.
2. We email you a drawing with letter sizes and colors, a preview of the sign lit up and an exact price.
3. When everything looks right, you approve it and pay by card. Larger orders can also pay by bank transfer.
4. We build your letters from the approved drawing and ship them with the mounting template.

Nothing is made until you approve the drawing. How it works has the full process, and Channel letters: the complete guide covers materials, sizing, permits and more.
